TI 公司的CC2530是真正的系統級芯片(SoC),適用于2.4GHz IEEE 802.15.4,ZigBee和RF4CE應用. CC2530包括了極好性能的一流RF收發器,工業標準增強性8051 MCU,系統中可編程的閃存,8KB RAM以及許多其它功能強大的特性,可廣泛應用在2.4-GHz IEEE 802.15.4 系統, RF4CE遙控制系統,ZigBee系統,家庭/建筑物自動化,照明系統,工業控制和監視,低功耗無線傳感器網絡,消費類電子和衛生保健.本文介紹了CC2530的主要特性,方框圖以及應用電路圖和所用元件表. 此外還介紹了CC2530EMK評估模塊套件的主要特性和詳細電路圖。

　　A True System-on-Chip Solution for 2.4-GHz IEEE 802.15.4 and ZigBee Applications

　　The CC2530 is a true system-on-chip (SoC) solution for IEEE 802.15.4, Zigbee and RF4CE applications. It enables robust network nodes to be built with very low total bill-of-material costs. The CC2530 combines the excellent performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful features. The CC2530 comes in four different flash versions: CC2530F32/64/128/256, with 32/64/128/256 KB of flash memory, respectively. The CC2530 has various operating modes, making it highly suited for systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption.

　　Combined with the industry-leading and golden-unit-status ZigBee protocol stack (Z-Stack) from Texas Instruments, the CC2530F256 provides a robust and complete ZigBee solution.

　　Combined with the golden-unit-status RemoTI stack from Texas Instruments, the CC2530F64 and higher provide a robust and complete ZigBee RF4CE remote-control solution.

　　CC2530主要特性:

　　RF/Layout

　　2.4-GHz IEEE 802.15.4 Compliant RF Transceiver

　　Excellent Receiver Sensitivity and Robustness to Interference

　　Programmable Output Power Up to 4.5 dBm

　　Very Few External Components

　　Only a Single Crystal Needed for Mesh Network Systems

　　6-mm × 6-mm QFN40 Package

　　Suitable for Systems Targeting Compliance With Worldwide Radio-Frequency Regulations: ETSI EN 300 328 and EN 300 440 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T-66 (Japan)

　　Low Power

　　Active-Mode RX (CPU Idle): 24 mA

　　Active Mode TX at 1 dBm (CPU Idle): 29 mA

　　Power Mode 1 (4 µs Wake-Up): 0.2 mA

　　Power Mode 2 (Sleep Timer Running): 1 μA

　　Power Mode 3 (External Interrupts): 0.4 μA

　　Wide Supply-Voltage Range (2 V-3.6 V)

　　Microcontroller

　　High-Performance and Low-Power 8051 Microcontroller Core With Code Prefetch 32-, 64-, 128-, or 256-KB In-System-Programmable Flash

　　8-KB RAM With Retention in All Power Modes

　　Hardware Debug Support

　　Peripherals

　　Powerful Five-Channel DMA

　　IEEE 802.15.4 MAC Timer, General-Purpose Timers (One 16-Bit, Two 8-Bit)

　　IR Generation Circuitry

　　32-kHz Sleep Timer With Capture

　　CSMA/CA Hardware Support

　　Accurate Digital RSSI/LQI Support

　　Battery Monitor and Temperature Sensor

　　12-Bit ADC With Eight Channels and Configurable Resolution

　　AES Security Coprocessor

　　Two Powerful USARTs With Support for Several Serial Protocols

　　21 General-Purpose I/O Pins (19× 4 mA, 2× 20 mA)

　　Watchdog Timer

　　Development Tools

　　CC2530 Development Kit

　　CC2530 ZigBee Development Kit

　　CC2530 RemoTI Development Kit for RF4CE

　　SmartRF Software

　　Packet Sniffer

　　IAR Embedded Workbench Available

　　CC2530應用:

　　2.4-GHz IEEE 802.15.4 Systems

　　RF4CE Remote Control Systems (64-KB Flash and Higher)

　　ZigBee Systems (256-KB Flash)

　　Home/Building Automation

　　Lighting Systems

　　Industrial Control and Monitoring

　　Low-Power Wireless Sensor Networks

　　Consumer Electronics

　　Health Care

　　

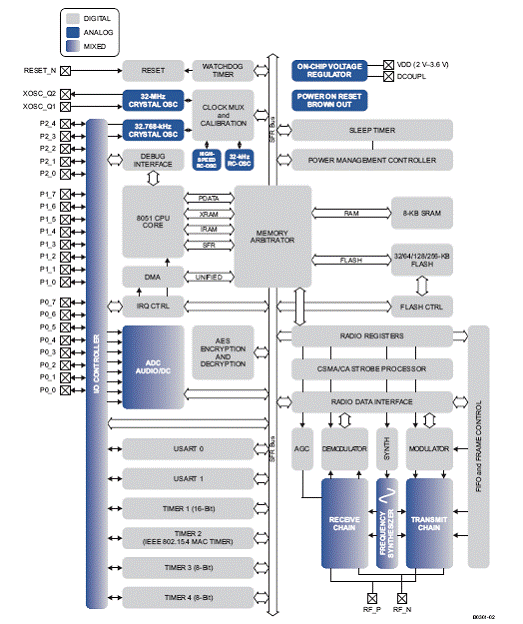

　　圖1.CC2530方框圖

　　

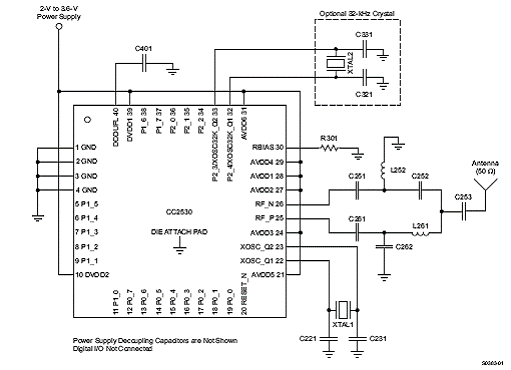

　　圖2.CC2530應用電路

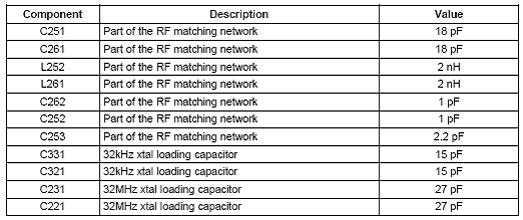

　　外接元件表(不包括電源去耦電容):

　　

　　CC2530EMK評估模塊套件

　　The CC2530 Evaluation Module Kit contains two CC2530 Evaluation Modules, which can be used either as standalone modules (requires external power) or connected to e.g. the SmartRF05EB Evaluation Boards (not included in kit) for full control from the PC. The evaluation modules can be used as a reference module for prototyping and for verifying the performance of the CC2530 RF IC. The CC2530 RF SoC enables both consumer and industrial grade applications by offering state-of-the-art selectivity/co-existence, excellent link budget, operation up to 125℃ and low voltage operation.

　　Features

　　The CC2530EMK includes:

　　2 x CC2530EM Evaluation Modules

　　2 x 2.4 GHz Antennas

　　Documentation

　　

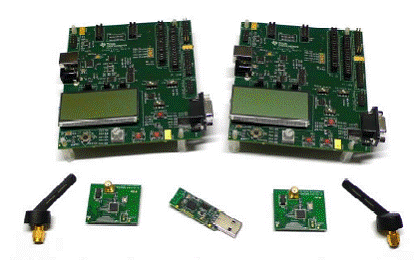

　　圖3.CC2530EMK評估模塊外形圖

　　Please refer to the following pages for the schematics for

　　CC2530 Evaluation Module

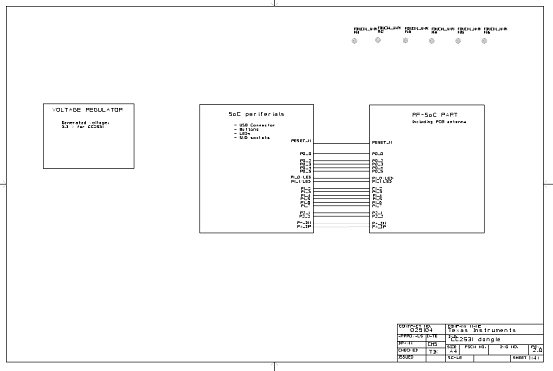

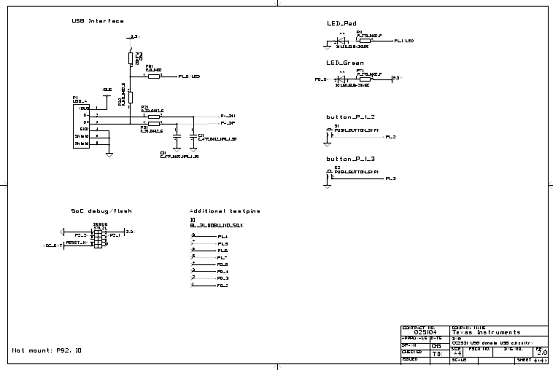

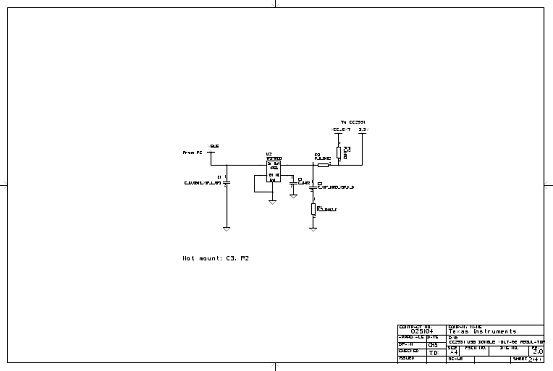

　　CC2531 USB Dongle

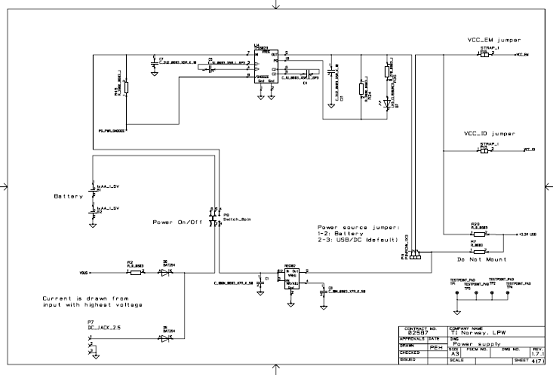

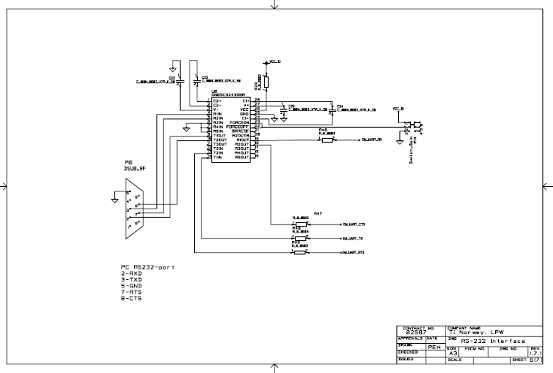

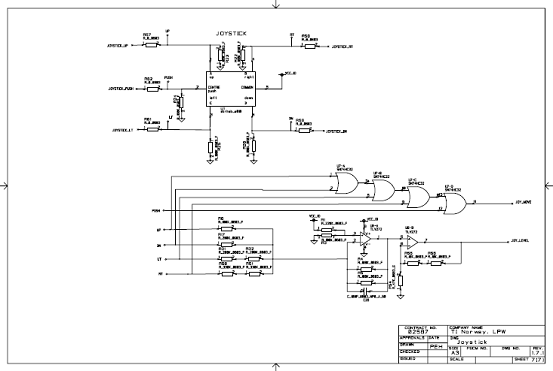

　　SmartRF05 Evaluation Board

　　

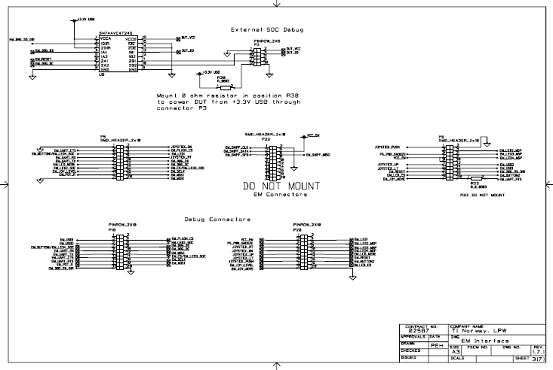

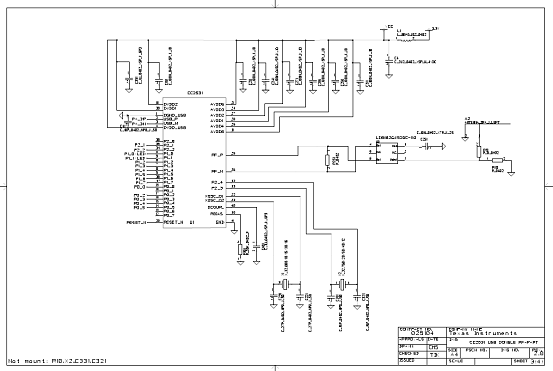

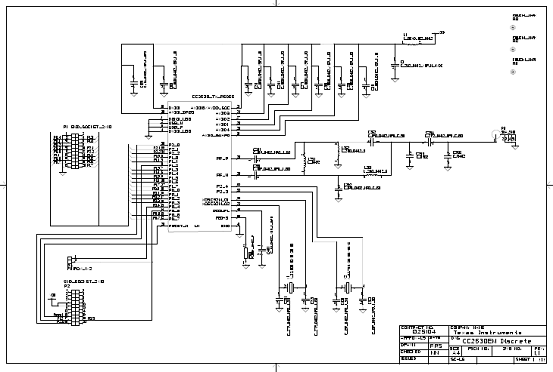

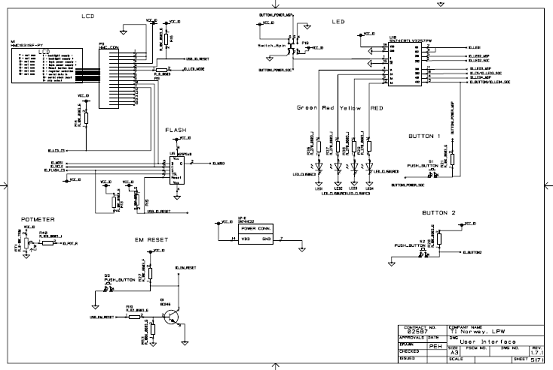

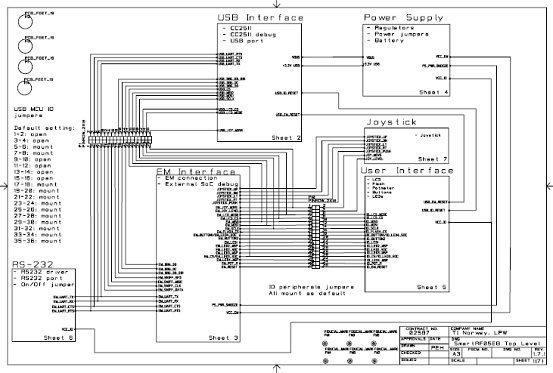

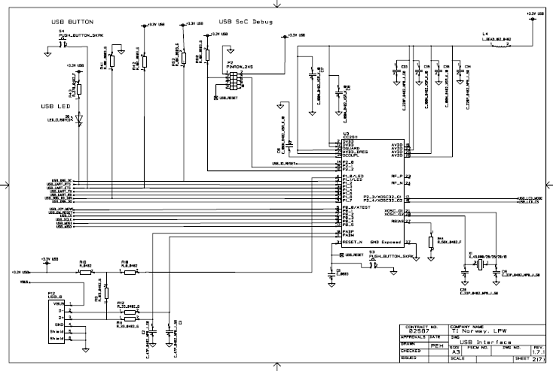

　　圖4.CC2530EMK評估模塊電路圖(1)

　　

　　圖5.CC2530EMK評估模塊電路圖(2)

　　

　　圖6.CC2530EMK評估模塊電路圖(3)

　　

　　圖7.CC2530EMK評估模塊電路圖(4)

　　

　　圖8.CC2530EMK評估模塊電路圖(5)

　　

　　圖9.CC2530EMK評估模塊電路圖(6)

　　

　　圖10.CC2530EMK評估模塊電路圖(7)

　　

　　圖11.CC2530EMK評估模塊電路圖(8)

　　

　　圖12.CC2530EMK評估模塊電路圖(9)

　　

　　圖13.CC2530EMK評估模塊電路圖(10)

　　

　　圖14.CC2530EMK評估模塊電路圖(11)

　　

　　圖15.CC2530EMK評估模塊電路圖(12)
